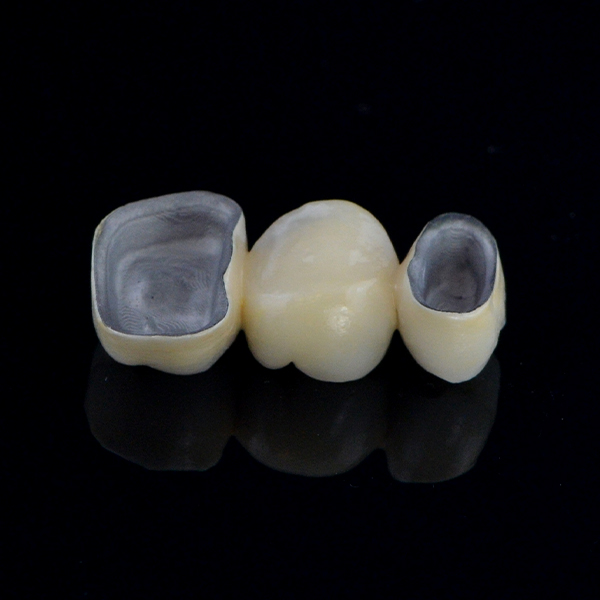

Porcelain Fused to Metal

PFMs are an excellent option for dentists who seek a restoration that combines both durability and natural-looking internal characteristics. The underlying coping replicates the performance of a natural tooth, while the ceramic coating replicates the natural esthetics.

  • Indicated for crowns and bridges, long-span bridges
  • Highest quality of alloys from Ivoclar Vivadent / Argen alloy manufacturers
  • All materials meet FDA requirements
IN-LAB
TURNAROUND TIME
5 Days
FABRICATION
in the USA
WARRANTY
7 YEAR

Specifications

Material Composition

Material Composition

Noble

Au   Pd   Ag   In   Ga
6.0   75.0   6.5   6.0   6.0



Hi-Noble White

 Au   Pd   Ag   In   Ga
 40.0   39.4   10.0   8.8   1.4



Hi-Noble Yellow

 Au   Pt   Pd   Ag   In
 73.80   8.50   5.40   8.98   1.90



Shades

Shades

16 Classic Vita Shades

Cementation

Cementation

Resin Self Etch/ Self Adhesive Resin
  • Panavia SA Cement, Kuraray
  • Rely-x UnicemAutomix 2, 3M ESPE
  • Max Cem Elite, Kerr
  • Multilink Automix, Ivoclar
RMGI (Resin Modified Glass Ionomer)
  • Fugi Cem Automix, GC America
  • Rely-x Luting Plus, 3M ESPE
Insurance Codes

Insurance Codes

  • D2750 Crown – Porcelain fused to high noble metal
  • D2751 Crown – Porcelain fused to predominantly base metal
  • D2752 Crown – Porcelain fused to noble metal
  • D6240 Pontic – Porcelain fused to high noble metal
  • D6241 Pontic – Porcelain fused to predominantly base metal
  • D6242 Pontic – Porcelain fused to noble metal

Limited Warranty



Limited Warranty/Limitation of Liability: Oral Arts Laboratories (“the lab”) warrants that all dental devices (a “device”) are made according to your specification and approval in the belief that the device will be useful and makes no other warranties including, but not limited to, any implied warranty of merchantability or fitness for a particular purpose. This limited warranty extends only to the original purchaser of a device and does not extend to patients or other individuals and/or entities to whom the device(s) is/are sold, implanted, inserted or delivered. Subject to the return of a device that is placed and then fails due to defects in materials or workmanship, the lab will repair or remake the device without charge or for a partial charge based on original invoice price, at the lab’s option, as follows:Porcelain to metal restorations, metal free restorations, all metal restorations, single-unit inlays, onlays, and screw-retained titanium or zirconia abutments (excluding abutments with angulations greater than 20 degrees), up to seven years.
