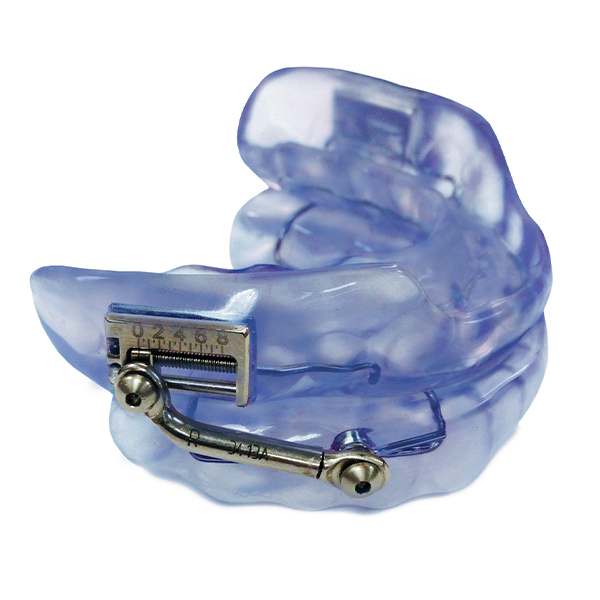

SomnoDent - Sleep Apnea Appliance

Worn during sleep, SomnoDent® devices fit over the upper and lower teeth. The device slightly moves the mandible forward, helping to keep the airway open and allowing you to breathe normally. This movement tightens the soft tissue and muscles of the upper airway, which prevents obstructive apneas while you sleep. The SomnoDent® line of devices are customized for the patient and offer superior comfort and quality. Patients can talk and open/close their mouths and lips while wearing their SomnoDent sleep apnea device. SomnoDent devices are fabricated using the highest quality acrylic which does not discolor or attract odors.


Custom Calibration

  • Patient specific calibration
  • 3 removable wings for 1mm of protrusion on the bottom
  • Fine calibration in .1mm increments with lugs on the top
  • Longer range of advancements (8.5mm) leading to fewer device resets


Premium Comfort

  • Proprietary SMH BFlex inner liner for superior retention
  • Drop in fit – even for patients with short teeth, little undercut or crown/bridge work


Original Innovation

  • Highest quality acrylic
  • Medical grade stainless steel ball clasps for retention
  • Lingual-less option available for additional tongue space

Herbst Advance™

Visual Simplicity

  • Visual calibration indicator makes it easy to measure how far device has been advanced
  • SMH BFlex offers superior comfort and retention
  • Longer rance of advancement (8mm) leading to fewer device resets over the life of the device


Popular Value

  • Standard telescopic mechanism (also available in Shim)
  • SMH BFlex offers superior comfort and retention, also available with ball clasps
21 Days


Required Case Material

Required Case Material

  • Upper and lower impressions

  • Construction bite open 5 mm incisally that reflects a position of the mandible approximately 50-60% of maximum protrusive distance from centric occlusion to full protrusive



  • Have central sleep apnea, severe respiratory disorders, advanced periodontal disease, or loose teeth

  • Patient is younger than 18 years of age

Insurance Codes

Insurance Codes

D5999 Unspecified Maxillofacial Prosthesis, By Report. Used for procedure that is not adequately described by a code. Describe procedure.

Limited Warranty

Limited Warranty/Limitation of Liability: Oral Arts Laboratories (“the lab”) warrants that all dental devices (a “device”) are made according to your specification and approval in the belief that the device will be useful and makes no other warranties including, but not limited to, any implied warranty of merchantability or fitness for a particular purpose. This limited warranty extends only to the original purchaser of a device and does not extend to patients or other individuals and/or entities to whom the device(s) is/are sold, implanted, inserted or delivered. Subject to the return of a device that is placed and then fails due to defects in materials or workmanship, the lab will repair or remake the device without charge or for a partial charge based on original invoice price, at the lab’s option, as follows: SomnoDent appliances are not covered by warranty.
